The SKB30 is a power bridge rectifier. The typical applications of the SKB30 include single phase rectifiers for power supplies, input rectifiers for variable frequency drives, rectifiers for DC motor field supplies, battery charger rectifiers and recommended snubber networ.
Parametrics
SKB30 absolute maximum ratings: (1)ID: 6.5A at Ta=45℃, isolated; 15A when Ta=45℃, chassis; (2)IDCL: 6A when Ta=45℃isolated; 13A when Ta=45℃, chassis; (3)IFSM: 370A when Tvj=25℃, 10ms; 320A when Tvj=150℃, 10ms; (4)i2t: 680A2s when Tvj=25℃; 500A2s when Tvj=150℃; (5)VF: 2.2V max when Tvj=25℃, IF=150A; (6)VTO: 0.85V max when Tvj=150℃; (7)rT: 12mΩ when Tvj=150℃; (8)IRD: 300μA; (9)IRD: 5mA; (10)trr: 25μs when Tvj=25℃; (11)fG: 2000Hz; (12)Rth(j-a): 8.5K/W.
Features
SKB30 features: (1)isolated metal case with screw terminal; (2)blocking voltage up to 1600V; (3)high surge current; (4)easy chassis mounting; (5)UL recognized.

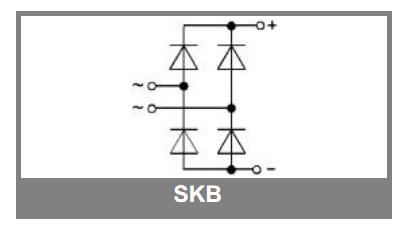

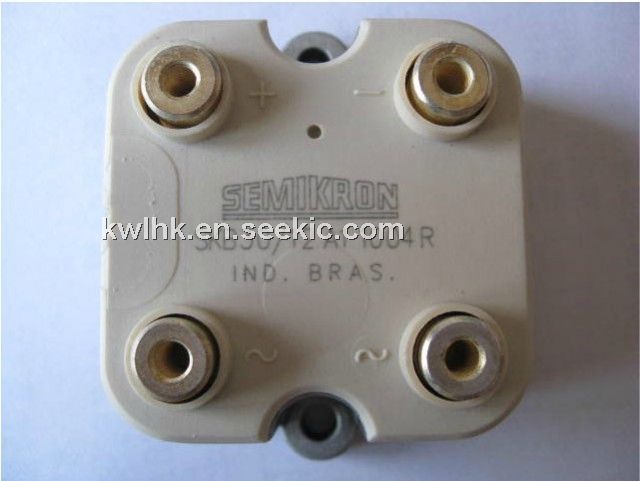

Diagrams
