Product Summary

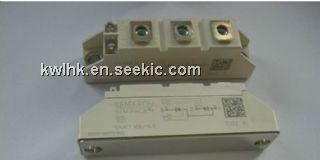

The SKKH213 is a thyristor /diode module. Applications are (1)DC motor control (e.g. for machine tools); (2)Temperature control (e.g. for ovens, chemical processes); (3)Professional light dimming (studios, theaters).
Parametrics
SKKH213 absolute maximum ratings: (1)Storage Temperature T STG: -55 to +150 °C; (2)Operating Temperature T OPR: -55 to +100 °C; (3)Wave solder temperature (see page 14 for reflow solder profiles)T SOL: 260 for 10 sec °C; (4)Total Device Power Dissipation @ T A = 25°C Derate above 25°C P D: 250 mW; (5)DC/Average Forward Input Current I F: 100 (non-M), 60 (-M)mA; (6)Reverse Input Voltage V R 6 V; (7)Forward Current - Peak (300μs, 2% Duty Cycle)I F (pk): 3 A; (8)LED Power Dissipation @ T A = 25°C Derate above 25°C P D: 150 (non-M), 120 (-M)mW; (9)Collector-Emitter Voltage V CEO: 30 V; (10)Collector-Base Voltage V CBO: 70 V; (11)Emitter-Collector Voltage V ECO: 7 V; (12)Detector Power Dissipation @ T A = 25°C Derate above 25°C P D: 150 mW.
Features
SKKH213 features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Chip soldered on direct copper bonded Al2O3 ceramic; (3)Thyristor with amplifying gate; (4)UL recognized, file no. E 63 532.
Diagrams
