Product Summary

The MRF6S27015NR1 is an N-Channel Enhancement-Mode Lateral MOSFET. It is designed for CDMA base station applications with frequencies from 2000 to 2700 MHz. The MRF6S27015NR1 is suitable for WiMAX, WiBro, BWA, and OFDM multicarrier Class AB and Class C amplifier applications.

Parametrics

MRF6S27015NR1 absolute maximum ratings: (1)Drain-Source Voltage, VDSS: -0.5, +68 Vdc; (2)Gate-Source Voltage, VGS: -0.5, +12 Vdc; (3)Storage Temperature Range, Tstg: -65 to +150℃; (4)Case Operating Temperature, TC: 150℃; (5)Operating Junction Temperature, TJ: 225℃.

Features

MRF6S27015NR1 features: (1)Characterized with Series Equivalent Large-Signal Impedance Parameters; (2)Internally Matched for Ease of Use; (3)Qualified Up to a Maximum of 32 VDD Operation; (4)Integrated ESD Protection; (5)225℃ Capable Plastic Package; (6)RoHS Compliant; (7)In Tape and Reel. R1 Suffix = 500 Units per 24 mm, 13 inch Reel.

Diagrams

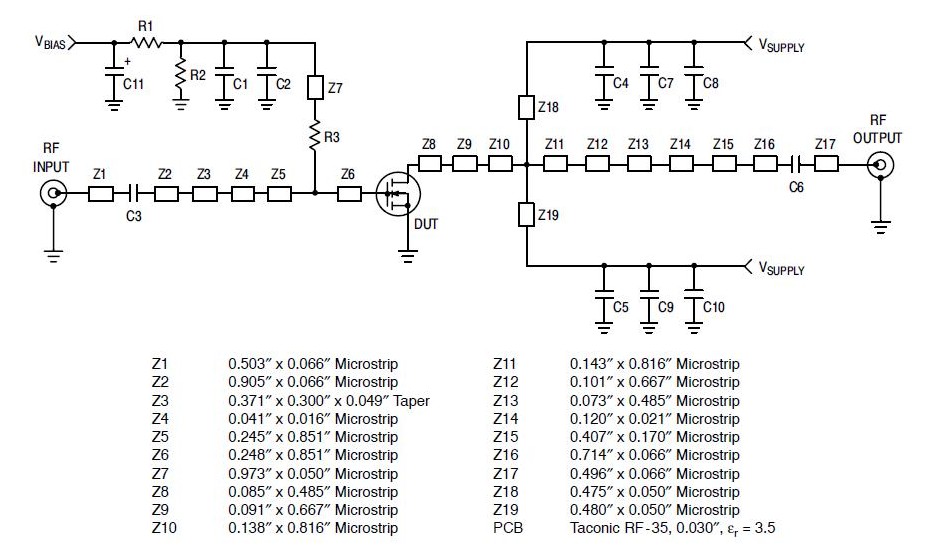

MRF6S27015NR1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MRF6S27015NR1
MRF6S27015NR1

Freescale Semiconductor

Transistors RF MOSFET Power HV6 2.7GHZ 15W

Data Sheet

0-271: $14.89
271-500: $10.73
