Product Summary
The A1020B-PL68C FPGA offerS a variety of packages, speed/performance characteristics, and processing levels for use in all high reliability and military applications. The A1020B-PL68C is implemented in a silicon gate, two-level metal CMOS process, utilizing Actels PLICE antifuse technology. This unique architecture offers gate array flexibility, high performance, and quick turnaround through user programming. Device utilization is typically 95 percent of available logic modules. The A1020B-PL68C includes on-chip clock drivers and a hard-wired distribution network. User-definable I/Os are capable of driving at both TTL and CMOS drive levels. Available packages for the military are the Ceramic Quad Flat Pack (CQFP) and the Ceramic Pin Grid Array (CPGA).
Parametrics
A1020B-PL68C absolute maximum ratings: (1)VCC DC Supply Voltage: -0.5 to +7.0 V; (2)VI Input Voltage: -0.5 to VCC +0.5 V; (3)VO Output Voltage: -0.5 to VCC +0.5 V; (4)IIO I/O Source Sink Current5: 20 mA; (5)TSTG Storage Temperature: -65 to +150 °C.
Features
A1020B-PL68C features: (1)Highly Predictable Performance with 100% Automatic Placement and Routing; (2)Device Sizes from 1,200 to 20,000 Gates; (3)Up to 6 Fast, Low-Skew Clock Networks; (4)Up to 202 User-Programmable I/O Pins; (5)More Than 500 Macro Functions; (6)Up to 1,276 Dedicated Flip-Flops; (7)I/O Drive to 10 mA; (8)Devices Available to DSCC SMD; (9)CQFP and CPGA Packaging; (10)Nonvolatile, User Programmable; (11)Logic Fully Tested Prior to Shipment; (12)100% Military Temperature Tested (–55°C to +125°C); (13)QML Certified Devices; (14)Proven Reliability Data Available; (15)Successful Military/Avionics Supplier for Over 10 Years.

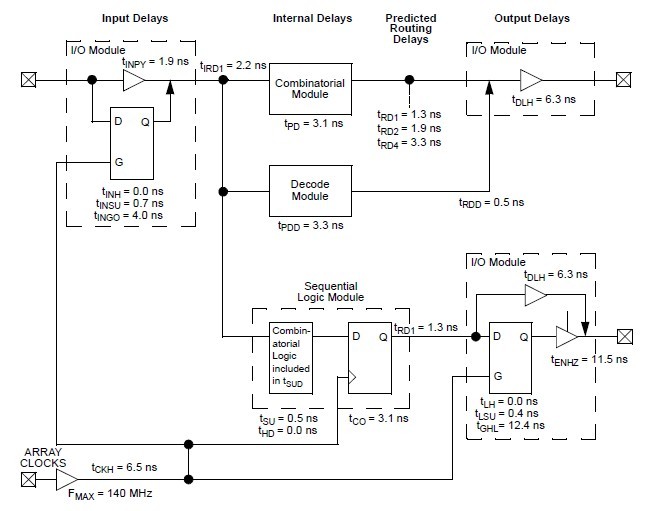

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() A1020B-PL68C |
![]() |
![]() IC FPGA 2K GATES 68-PLCC COM |
![]() Data Sheet |
![]()
|
|
||||||||||||
