A3955SLB

A3955SLB, Full-Bridge PWM Microstepping Motor Driver, 50 V, 1.5 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.31~1.46 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	1.46 / Piece
500 ~ 1000 :	1.39 / Piece
1000 ~ 1500 :	1.31 / Piece

PartNumber:: A3955SLB

Brand:: Allegro MicroSystems - Allegro | Pack: SOP | D/C: 01+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-17

From Other Seller

Part Number:A3955SLB
US $1.31 - 1.46
A3955SLBT SOP16

US $0.00 - 0.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

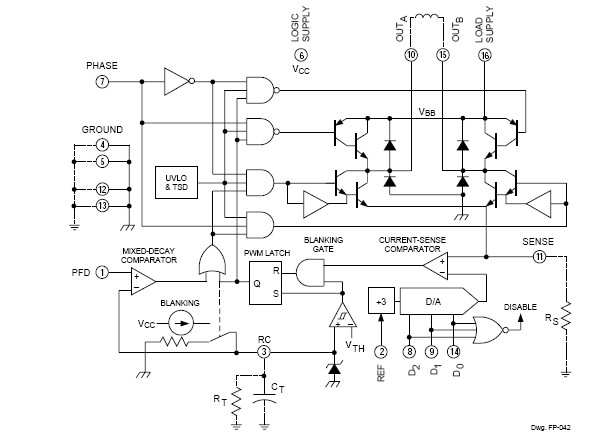

The A3955SLB is a Full-Bridge PWM Microstepping Motor Driver. The A3955SLB is designed to drive one winding of a bipolar stepper motor in a microstepping mode. The outputs are rated for continuous output currents to ±1.5 A and operating voltages to 50 V. Internal pulse width modulated (PWM) current control combined with an internal three-bit nonlinear digitalto - analog converter allows the motor current to be controlled in full-, half-, quarter-, or eighth-step (microstepping) modes. Nonlinear increments minimize the number of control lines necessary for microstepping. Microstepping provides increased step resolution, and reduces torque variations and resonance problems at low speed.

Parametrics

A3955SLB absolute maximum ratings: (1)Load Supply Voltage : 50 V; (2)Logic Supply Voltage : 7.0 V; (3)Logic/Reference Input Voltage Range : –0.3 to VCC + 0.3 V; (4)Sense Voltage : 1.0 V; (5)Output Current, Continuous : ±1.5 mA; (6)Operating Ambient Temperature : –20 to 85 ℃; (7)Maximum Junction Temperature : 150 ℃; (8)Storage Temperature : –55 to 150 ℃.

Features

A3955SLB features: (1)±1.5 A continuous output current; (2)50 V output voltage rating; (3)Internal PWM current control; (4)3-bit nonlinear DAC; (5)Fast, mixed fast/slow, and slow current-decay modes; (6)Internal transient-suppression diodes; (7)Internal thermal shutdown circuitry; (8)Crossover-current and UVLO protection.
