Product Summary
The A6821SLWT is an 8-Bit Serial Input Latched Sink Driver. The A6821SLWT has an eight-bit CMOS shift register and CMOS control circuitry, eight CMOS data latches, and eight bipolar current-sinking Darlington output drivers. The applications of it are Multiplexed LED displays, Incandescent lamps.
Parametrics
A6821SLWT absolute maximum ratings: (1)Output Voltage, VOUT: 50 V; (2)Logic Supply Voltage, VDD:7 V; (3)Input Voltage Range, VIN: -0.3 V to VDD +0.3 V; (4)Continuous Output Current (each output), IOUT: 500 mA; (5)Package Power Dissipation, PD: 1.5 W; (6)Ambient Temperature, TA: -20°C to +85°C; (7)Storage Temperature, TS: -55°C to +150°C.
Features
A6821SLWT features: (1)3.3 V to 5 V logic supply range; (2)Power on reset (POR); (3)To 10 MHz data input rate; (4)CMOS, TTL compatible; (5)–40°C operation available; (6)Schmitt trigger inputs for improved noise immunity; (7)Low-power CMOS logic and latches; (8)High-voltage current-sink outputs; (9)Internal pull-up/pull down resistors.

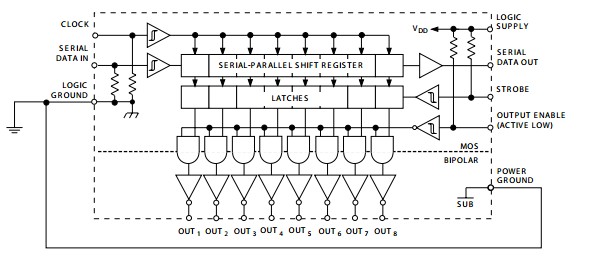

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() A6821SLWTR-T |
![]() |
![]() IC SINK DVR 8BIT LATCH 16-SOIC |
![]() Data Sheet |
![]() Negotiable |
|
||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||
![]() |
![]() A6821 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||
![]() |
![]() A6821EA-T |
![]() |
![]() IC SINK DRIVER 8BIT LATCH 16-DIP |
![]() Data Sheet |
![]() Negotiable |
|
||||||
![]() |
![]() A6821SA |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||
![]() |
![]() A6821SAT |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||
![]() |
![]() A6821SA-T |
![]() |
![]() IC SINK DRIVER 8BIT LATCH 16-DIP |
![]() Data Sheet |
![]() Negotiable |
|
||||||
![]() |
![]() A6821SLW-T |
![]() |
![]() IC SINK DRIVER 8BIT LATCH 16SOIC |
![]() Data Sheet |
![]()
|
|
