Product Summary

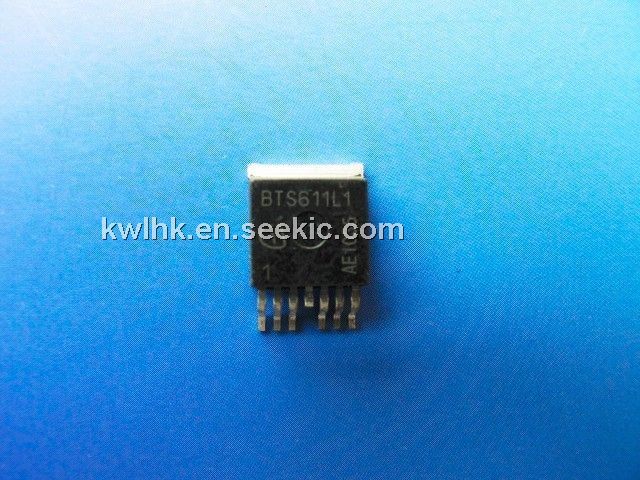

The BTS611L1 is a Smart Two Channel Highside Power Switch. N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. The applications of the BTS611L1 include μC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads, All types of resistive, inductive and capacitve loads, Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS611L1 absolute maximum ratings: (1)Overvoltage protection, Vbb(AZ): 43 V; (2)Operating voltage, Vbb(on): 5.0 to 34 V; (3)On-state resistance, RON: 200 to 100 mΩ; (4)Load current (ISO), IL(ISO): 2.3 to 4.4 A; (5)Current limitation, IL(SCr): 4 A.

Features

BTS611L1 features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection1); (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (9)Open drain diagnostic output; (10)Open load detection in ON-state; (11)CMOS compatible input; (12)Loss of ground and loss of Vbbprotection; (13)Electrostatic discharge (ESD) protection.

Diagrams

 BTS611L1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BTS611L1
BTS611L1

SWITCH DUAL CHAN PWR TO-220AB7
Data Sheet
Negotiable
BTS611L1 E3128A
BTS611L1 E3128A
Infineon Technologies
Power Switch ICs - Power Distribution PROFET SMART 2 CH Hi Side Pwr SW
Data Sheet
0-1: $1.50
1-10: $1.39
10-100: $1.28
100-250: $1.20
250-1000: $1.05
BTS611L1E3230
BTS611L1E3230

SWITCH DUAL CHAN PWR TO-220AB7
Data Sheet
Negotiable
