Product Summary
The CY62128L-70SI is a high-performance CMOS static RAM organized as 131,072 words by 8 bits. Easy memory expansion is provided by an active LOW chip enable (CE1), an active HIGH chip enable (CE2), an active LOW output enable (OE), and three-state drivers. The CY62128L-70SI has an automatic power-down feature that reduces power consumption by more than 75% when deselected.
Parametrics
CY62128L-70SI absolute maximum ratings: (1)storage temperature: –65°c to +150°c; (2)ambient temperature with power applied:–55°c to +125°c; (3)supply voltage on vcc to relative gnd[1]: –0.5v to +7.0v; (4)dc voltage applied to outputs: in high z state[1]: –0.5v to vcc +0.5v; dc input voltage[1]: –0.5v to vcc +0.5v; (5)Current into Outputs (LOW): 20 mA; (6)Static Discharge Voltage: >2001V (per MIL-STD-883, Method 3015); (7)Latch-Up Current: >200 mA.
Features
CY62128L-70SI features: (1)4.5V - 5.5V operation; (2)CMOS for optimum speed/power; (3)Low active power (70 ns, LL version): 330 mW (max.)(60 mA); (4)Low standby power (70 ns, LL version): 110 mW (max.)(20 mA); (5)Automatic power-down when deselected; (6)TTL-compatible inputs and outputs; (7)Easy memory expansion with CE1, CE2, and OE options.

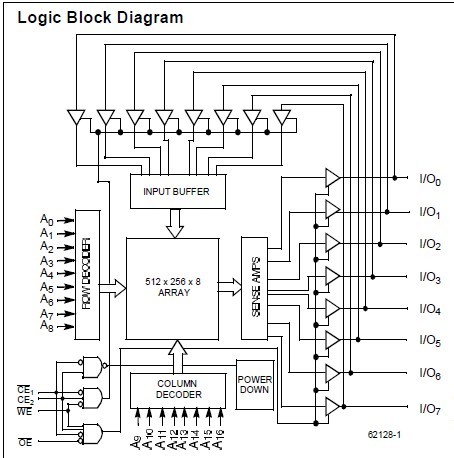

Diagrams
