Product Summary

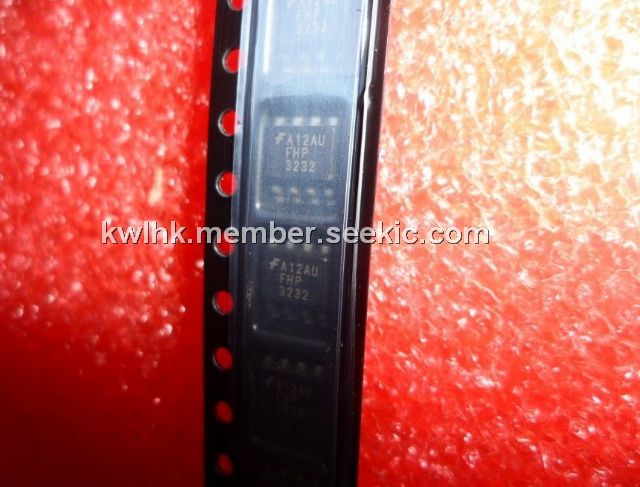

The FHP3232 (dual) are low-cost,high-performance, voltage feedback amplifiers that consumeonly 2.5mA of support current per channel, while providing±100mA of output current. These amplifiers are design edto operate from 2.7V to 12V (±6V) supplies. The common-mode voltage range includes the negative rail and the out-put provides rail-to-rail performance.The FHP3232 are designed on a complimentary bipolar process and provide 85MHz of bandwid that VOUT = 2Vpp and gain of 5V/V. The combination of lowpower, rail-to-rail performance, low-voltage operation,and tiny package options make these amplifiers well suited for use in many general-purpose, high-speed applications.
Parametrics
The absolute maximum ratings of FHP3232 are (1)Supply Voltage: 12.6V; (2)Input Voltage Range:+Vs +0.5VV; (3)Junction Temperature:150°C; (4)Storage Temperature Range:150°C; (5)Re?ow Temperature (Soldering):260°C; (6)Operating Temperature Range:+85°C; (7)Supply Voltage Range:12.0V
Features
The features of FHP3232 can be summarized as (1)2.5mA supply current per amplifier; (2)260MHz GBWPStable for G = 5 and above; (3)Output voltage range at RL = 150Ω: ±4.7V; (4)Input includes negative rail; (5)400V/μs slew rate; (6)±100mA output current; (7)17nV/√Hz input voltage noise; (8)>100dB PSRR, CMRR, and open-loop gain; (9)FHP3232 lead-free package option (SOIC-8); (10)RoHS compliant; (11)Fully specified at +3V, +5V, and ±5V supplies
Diagrams
<P><IMG alt="FHP3232 Pin Configuration" src="http://www.seekic.com/uploadfile/ic-mfg/201283202944100.jpg" border=0></P>
