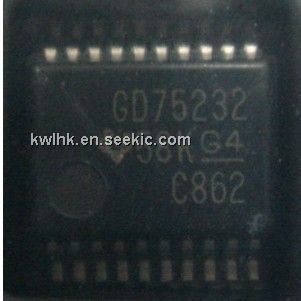

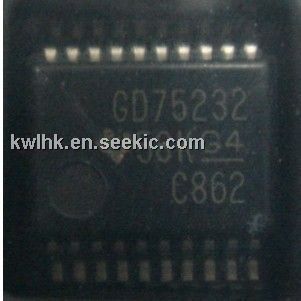

GD75232

GD75232, multiple RS-232 driver and receiver, 15 V, 20 mA, 120 kbit/s, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.00 / Piece
500 ~ 1000 :	2.00 / Piece
1000 ~ 1500 :	1.00 / Piece

PartNumber:: GD75232

Brand:: Texas Instruments - TI | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-15

From Other Seller

Part Number:GD75232
US $1.00 - 3.00
Quantity:

piece

Product Summary

The GD75232 is a multiple RS-232 driver and receiver. The GD75232 combines three drivers and five receivers from the Texas Instruments trade-standard SN75188 and SN75189 bipolar quadruple drivers and receivers, respectively. The bipolar circuits and processing of the GD75232PWR provide a rugged, low-cost solution for this function at the expense of quiescent power and external passive components relative to the SN75C185. The GD75232 complies with the requirements of the TIA/EIA-232-F and ITU (formerly CCITT) V.28 standards.

Parametrics

GD75232 absolute maximum ratings: (1)Supply voltage: VCC:10 V, VDD:15 V, VSS:-15 V; (2)Input voltage range, VI: Driver:-15 V to 7 V, Receiver:-30 V to 30 V; (3)Driver output voltage range, VO:-15 V to 15 V; (4)Receiver low-level output current, IOL:20 mA; (5)Package thermal impedance:83℃/W; (6)Operating virtual junction temperature:150℃; (7)Storage temperature range:-65℃ to 150℃.

Features

GD75232 features: (1)Single Chip With Easy Interface Between UART and Serial-Port Connector of IBM PC/AT and Compatibles; (2)Meet or Exceed the Requirements of TIA/EIA-232-F and ITU v.28 Standards; (3)Designed to Support Data Rates up to 120 kbit/s; (4)Pinout Compatible With SN75C185 and SN75185.
