Product Summary

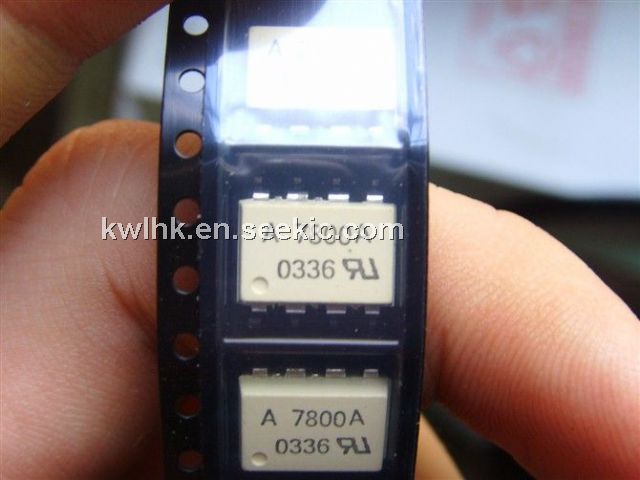

The HCPL-7800A#50Y is a high CMR isolation amplifier. The device provides a unique combination of features ideally suited for motor control circuit designers.

Parametrics

HCPL-7800A#50Y absolute maximum ratings: (1)Storage Temperature: -55℃ to 125℃; (2)Ambient Operating Temperature: -40℃ to 100℃; (3)Supply Voltages: 0V to 5.5V; (4)Steady-State Input Voltage: -2.0V to VDD1+0.5V; (5)Two Second Transient Input Voltage: -6.0V; (6)Output Voltages: -0.5V to VDD2+0.5V; (7)Lead Solder Temperature: 260℃(1.6 mm below seating plane, 10 sec.).

Features

HCPL-7800A#50Y features: (1)15 kV/μs Common-Mode Rejection at VCM = 1000V; (2)Compact, Auto-Insertable Standard 8-pin DIP Package; (3)4.6 μV/℃ Offset Drift vs. Temperature; (4)0.9 mV Input Offset Voltage; (5)85 kHz Bandwidth; (6)0.1% Nonlinearity; (7)Worldwide Safety Approval: UL 1577 (3750 V rms/1 min), VDE 0884 and CSA; (8)Advanced Sigma-Delta A/D Converter Technology; (9)Fully Differential Circuit Topology; (10)1 μm CMOS IC Technology.

Diagrams

HCPL-7800A#50Y block diagram
