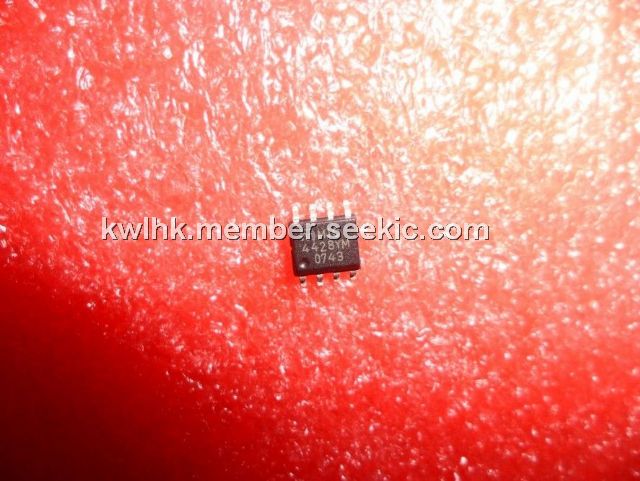

Product Summary

The MIC4428YM is a highly reliable dual lowside MOSFET driver fabricated on a BiCMOS/DMOS process for low power consumption and high efficiency. This driver translates TTL or CMOS input logic levels to output voltage levels that swing within 25mV of the positive supply or ground. The MIC4428YM is available in three configurations: dual inverting, dual noninverting, and one inverting plus one noninverting output. The MIC4428YM is pin-compatible replacement.

Parametrics

MIC4428YM absolute maximum ratings: (1)Supply Voltage (VS): +22V; (2)Input Voltage (VIN): VS+0.3V to GND–5V; (3)Junction Temperature (TJ): 150℃; (4)Storage Temperature: –65℃ to +150℃; (5)Lead Temperature (10 sec.): 300℃; (6)Supply Voltage (VS): +4.5V to +18V; (7)Temperature Range (TA): –55℃ to +125℃; (8)Package Thermal Resistance, SOIC: 75℃/W.

Features

MIC4428YM features: (1)Bipolar/CMOS/DMOS construction; (2)Latch-up protection to >500mA reverse current; (3)1.5A-peak output current; (4)4.5V to 18V operating range; (5)Low quiescent supply current; (6)Switches 1000pF in 25ns; (7)Matched rise and rall times; (8)7Ω output impedance; (9)<40ns typical delay; (10)Logic-input threshold independent of supply voltage; (11)Logic-input protection to –5V; (12)6pF typical equivalent input capacitance; (13)25mV max. output offset from supply or ground; (14)Replaces MIC426/427/428 and MIC1426/1427/1428; (15)Dual inverting, dual noninverting, and inverting/noninverting configurations; (16)ESD protection.

Diagrams

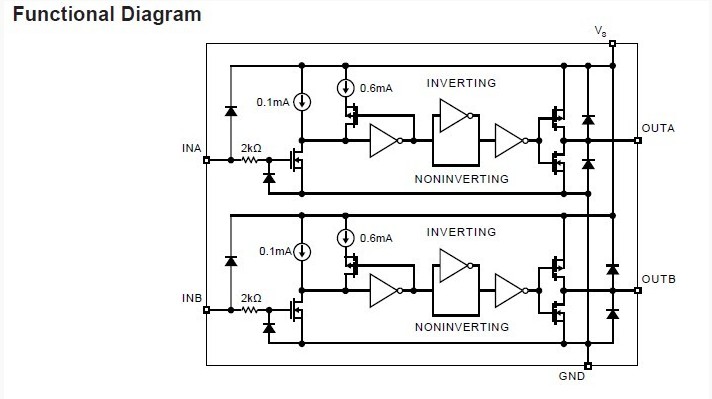

MIC4428YM functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC4428YM
MIC4428YM

IC DRIVER MOSFET 1.5A DUAL 8SOIC
Data Sheet
0-1: $1.06
1-25: $0.86
25-100: $0.77
100-250: $0.68
250-500: $0.60
MIC4428YM TR
MIC4428YM TR

IC DRIVER MOSFET 1.5A DUAL 8SOIC
Data Sheet
0-1: $1.20
1-10: $1.03
10-25: $0.92
25-100: $0.84
100-250: $0.75
250-500: $0.65
500-1000: $0.55
MIC4428YMM
MIC4428YMM

IC DRIVER MOSFET 1.5A DUAL 8MSOP
Data Sheet
0-1: $0.98
1-25: $0.78
25-100: $0.59
100-250: $0.55
250-500: $0.53
MIC4428YMM TR
MIC4428YMM TR

IC DRIVER MOSFET 1.5A DUAL 8MSOP
Data Sheet
0-2500: $0.50
