Product Summary
The RC4200MT is an Analog Multiplier. It has complete compensation for nonlinearity, the primary source of error and distortion. The RC4200MT also has three onboard operational amplifiers designed specifically for use in multiplier logging circuits. The RC4200MT can be used in a wide variety of applications without sacrificing accuracy. Four-quadrant multiplication, two-quadrant division, square rooting, squaring and RMS conversion can all be easily implemented with predictable accuracy. The nonlinearity compensation is not just trimmed at a single temperature, it is designed to provide compensation over the full temperature range. The applications of the RC4200MT are Low distortion audio modulation circuits, Voltage-controlled active filters, Precision oscillators.
Parametrics
RC4200MT absolute maximum ratings: (1)Supply Voltage:-22 V; (2)Input Current:-5 mA; (3)Storage Temperature Range:-55℃ to +125℃; (4)Operating Temperature Range:0℃ to +70℃.
Features
RC4200MT features: (1)High accuracy; (2)Nonlinearity:0.1%, Temperature coefficient:0.005%/℃; (3)Multiple functions; (4)Multiply, divide, square, square root, RMS-to-DC conversion, AGC and modulate/demodulate; (5)Wide bandwidth:4 MHz; (6)Signal-to-noise ratio:94 dB.

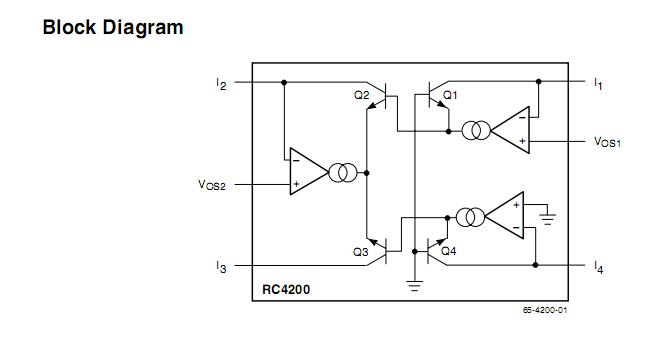

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

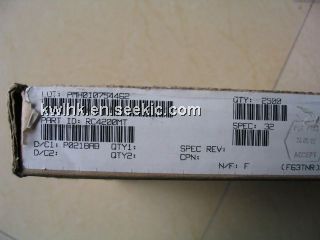

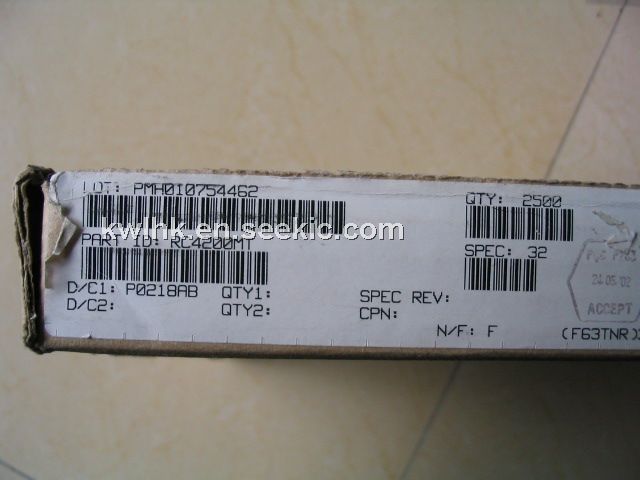

![]() RC4200MT |
![]() Fairchild Semiconductor |
![]() Multipliers / Dividers SOIC-8 |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() RC4200MT_32 |
![]() Fairchild Semiconductor |
![]() Multipliers / Dividers |
![]() Data Sheet |
![]() Negotiable |
|
