Product Summary
The SN74LVC139APWR is a dual 2-line to 4-line decoder/demultiplexer. It is designed for 1.65-V to 3.6-V VCC operation. The device comprises two individual 2-line to 4-line decoders in a single package. The active-low enable (G) input can be used as a data line in demultiplexing applications. This decoder/demultiplexer features fully buffered inputs, each of which represents only one normalized load to its driving circuit.
Parametrics
SN74LVC139APWR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 6.5 V; (2)Input voltage range, VI (see Note 1): 0.5 V to 6.5 V; (3)Output voltage range, VO (see Notes 1 and 2): 0.5 V to VCC + 0.5 V; (4)Input clamp current, I IK (VI < 0): 50 mA; (5)Output clamp current, IOK (VO < 0): 50 mA; (6)Continuous output current, IO: ±50 mA; (7)Continuous current through VCC or GND: ±100 mA; (8)Package thermal impedance, θJA (see Note 3): D package: 73°C/W; (9)Storage temperature range, Tstg: 65°C to 150°C
Features
SN74LVC139APWR features: (1)Operates From 1.65 V to 3.6 V; (2)Inputs Accept Voltages to 5.5 V; (3)Max tpd of 6.2 ns; (4)Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°C; (5)Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25°C; (6)Latch-Up Performance Exceeds 250 mA Per JESD 17; (7)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101).

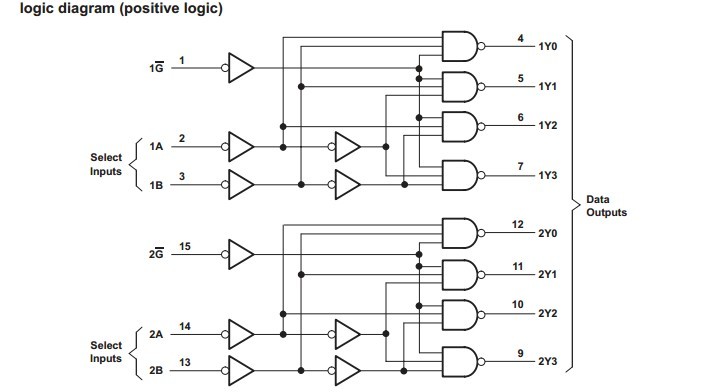

Diagrams
