Product Summary
The VV6444C001-EC is a low cost digital camera (LCDC) chipset. The chipset provides the basis of an easy-to-use, user friendly camera, which will be equally adaptable for use by children and adults for stills photography or dual-mode use (i.e. Digital stills while untethered, and videoconferencing from the same camera). Also it incorporates ST high performance VV6444/ 6410 CIF (352 x 288 pixel) or VV6500 VGA (640 x 480 pixel) resolution CMOS sensors. A CMOS solution gives manufacturers inherent benefits, providing a highly integrated compact solution which has a low system cost, is straightforward to implement, and has low power consumption, giving long battery life.
Parametrics
VV6444C001-EC absolute maximum ratings: (1)Supply Voltage:: 6-9V (when powered from battery) or 5V; (2)Operating Temperature range: 0 to 40°C; (3)Example lens horizontal FOV: 44°; (4)Max. RS232 cable length supported: 2m; (5)Image upload format: Raw Bayer; (6)PC driver output format: Colour RGB bitmap; (7)CIF output: 352 x 288 pixels.
Features
VV6444C001-EC features: (1)CIF (352 x 288) or VGA (640 x 480) resolution sensor; (2)Using 64MBit memory, 80 picture storage capacity in camera (CIF), 26 (VGA), or 320 (QCIF).; (3)Using 16MBit memory, 20 picture storage capacity, in camera (CIF), or 80 (QCIF); (4)USB/RS232 interface options; (5)Evaluation kit available; (6)Low power consumption (typically 75mA) for complete camera and low system cost per pixel; (7)High speed picture upload with USB; (8)USB tethered video mode gives a QCIF resolution videoconferencing camera with VfW support; (9)Continuous mode for capturing image sequences (while untethered) and downloading to AVI file format; (10)Memory refresh allows picture retention when camera is in standby mode with very low current consumption; (11)TWAIN/Video for Windows driver support; (12)Numeric LCD panel supported.

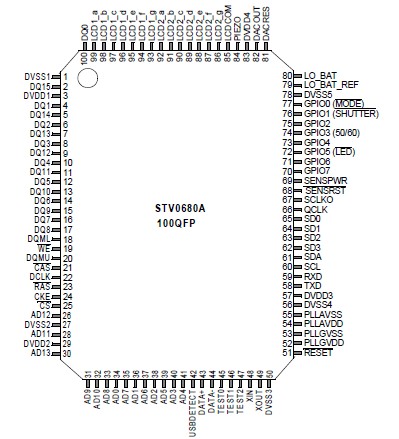

Diagrams
