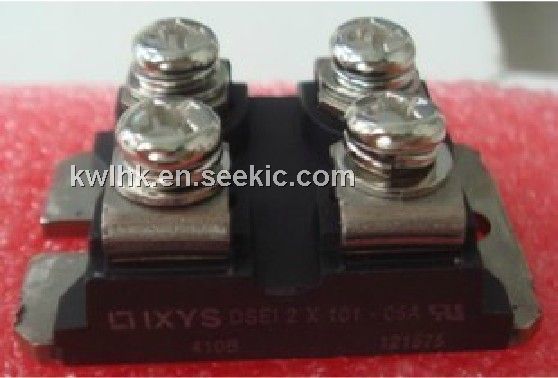

DSEI2X101-06A

DSEI2X101-06A, Fast Recovery Epitaxial Diode, 24A, 3mA, 4.7mΩ, dip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $30.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	50.00 / Piece
51 ~ 100 :	40.00 / Piece
101 ~ 200 :	30.00 / Piece

PartNumber:: DSEI2X101-06A

Brand:: IXYS Corporation - ixys | D/C: 12+

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-19

From Other Seller

Part Number:DSEI2X101-06A
US $30.00 - 50.00
Quantity:

piece

Product Summary

The DSEI2X101-06A is a Fast Recovery Epitaxial Diode.

Parametrics

DSEI2X101-06A absolute maximum ratings: (1)IR TVJ = 25℃ VR = VRRM: 3mA; (2)IR TVJ = 25℃ VR = 0.8×VRRM: 1mA; (3)IR TVJ = 125℃ VR = 0.8×VRRM: 20mA; (4)VF IF = 100 A; TVJ = 150℃: 1.17V ; (5)VF TVJ = 25℃: 1.25V; (6)VT0 For power-loss calculations only: 0.70V; (7)rT: 4.7 mΩ; (8)RthJC: 0.5 K/W; (9)RthCH: 0.05 K/W; (10)trr IF = 1A; -di/dt = 400A/μs; VR = 30 V; TVJ = 25℃: 50ns; (11)IRM VR = 100 V; IF = 80A; -diF/dt = 200 A/μs L≤0.05 mH; TVJ = 100℃: 24A

Features

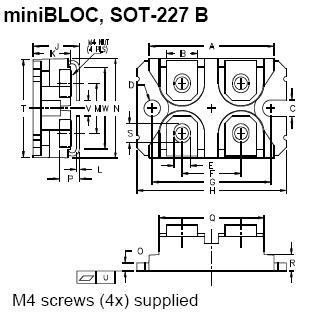

DSEI2X101-06A features: (1)International standard package; (2)miniBLOC (ISOTOP compatible); (3)Isolation voltage 2500 V; (4)matched diodes f. parallel operation; (5)Planar passivated chips; (6)two independent diodes; (7)Very short recovery time; (8)Extremely low switching losses; (9)Low IRM-values; (10)Soft recovery behaviour.
