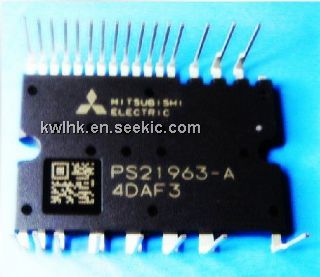

Product Summary

The PS21963 is an electric semiconductor - 600V/8A low-loss CSTBTTM inverter bridge for three phase DC-to-AC power conversion.

Parametrics

PS21963 absolute maximum ratings: (1)Supply voltage: 450V; (2)Supply voltage (surge): 500V; (3)Collector-emitter voltage: 600V; (4)Each IGBT collector current: 8A; (5)Each IGBT collector current (peak): 16A; (6)Collector dissipation: 243W; (7)Junction temperature: –20~+125℃.

Features

PS21963 features: (1)For upper-leg IGBTS :Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection; (2)For lower-leg IGBTS : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC); (3)Fault signaling : Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply); (4)Input interface : 3V, 5V line (High Active); (5)UL Approved : Yellow Card No. E80276.

Diagrams

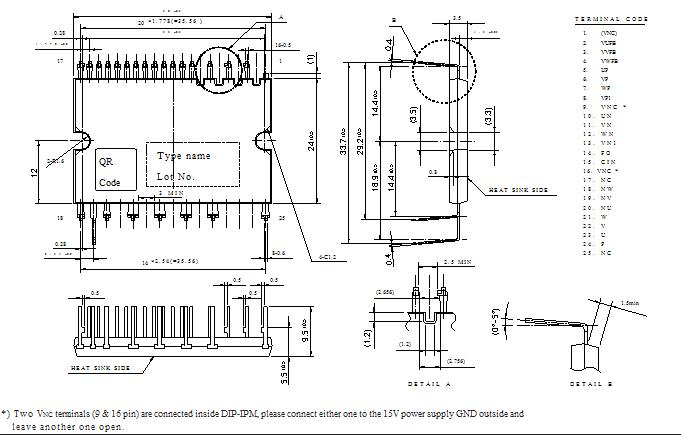

PS21963 pin connection
