Product Summary

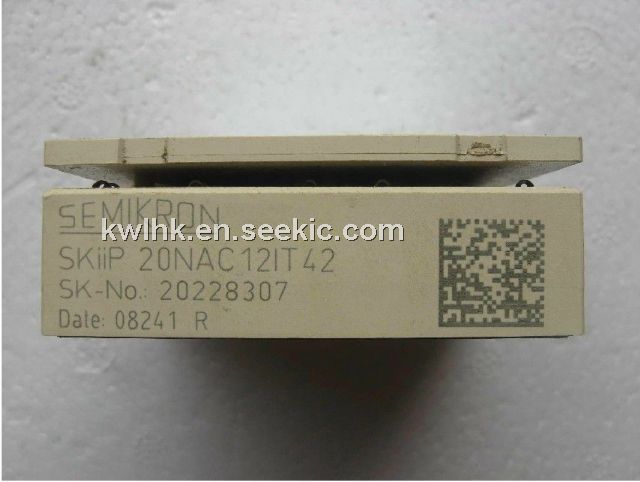

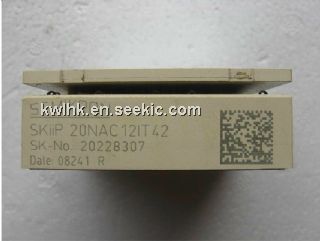

The SKIIP20NAC12IT42 is an intelligent Power module. The applications of the device include inverter and motor control applications.

Parametrics

SKIIP20NAC12IT42 absolute maximum ratings: (1)IGBT-Inverter: VCES: 1200V; VCC, operating DC link voltage: 900V; VGES: ±20V; IC, ts=25(70)℃: 2000(1500)A; (2)Diode-Inverter: IF=-IC, Ts = (25)70 ℃: 1760(1340) A; IFSM, tp = 10 ms: 13500A; I2t(diode), Diode, Tj=150℃, 10ms: 911 kA2s; (3)Tj(Tstg): -40 to 150(125)℃.

Features

SKIIP20NAC12IT42 features: (1)SKiip technology inside; (2)SPT (soft punch trough) IGBTs; (3)CAL diode technology; (4)Integrated current sensor; (5)Integrated temperature sensor; (6)Integrated heat sink; (7)IEC 60721-3-3 (humidity) class 3K3/IE32; (8)IEC 60068-1(climate) 40/125/56; (9)UL recognized file no.E65532.

Diagrams

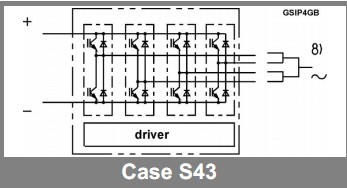

SKIIP20NAC12IT42 pin connection
