Product Summary

The SKKT500/16E is a thyristor / diode module.The typical applications of SKKT500/16E include: (1)AC motor softstarters ; (2)Input converters for AC inverter drives; (3)DC motor control (e.g. for machine tools); (4)Temperature control (e.g. for ovens, chemical processes); (5)Professional light dimming (studios, theaters).

Parametrics

SKKT500/16E absolute maximum ratings: (1)VRSM: 1700 V; (2)VRRM, VDRM: 1600 V; (3)IATV, sin.180; TC=85(100)℃: 540(390) A; (4)ID, P16/200F; Ta=35℃; B2/B6: 665/845 A; (5)IRMS, P16/300F; Ta=35℃; W1/W3: 850/3*670 A; (6)ITSM: Tvij=25℃; 10 ms: 17000 A; (7)tgd, Tvij=25℃; IG=1 A; diG/dt=1A/μs: 1 μs; (8)tgr, VD=0.67*VDRM: 1 μs; (9)tq, Tvij=130℃: 100 to 200 μs; (10)IH, Tvij=25℃; typ./max: 150/500 mA; (11)Tvij: -40 to +130℃; (12)Tstg: -40 to +130℃.

Features

SKKT500/16E features: (1)Heat transfer through aluminium nitride ceramic isolated metal baseplate; (2)Precious metal pressure contacts for high reliability; (3)UL recognized, file no. E 63 532.

Diagrams

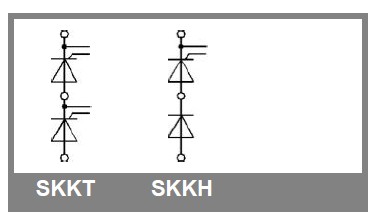

SKKT500/16E pin connection
