Product Summary

The UTC3308L is a single-supply dual high current operational amplifier. The UTC3308L electrically erasable and In-System Reprogrammable (ISR), which simplifies both design and manufacturing flows, thereby reducing costs. The ISR feature provides the ability to reconfigure the devices without having design changes cause pinout or timing changes. And this device operates with a 5V supply and can support 5V or 3.3V I/O levels.

Parametrics

UTC3308L absolute maximum ratings: (1)Supply Voltage:15V / ±7.5V V; (2)Differential Input Voltage: 15 V; (3)Input Voltage: -0.3 to +15 V; (4)Power Dissipation: 300 mW; (5)Operating Temperature: -20 to +75 °C; (6)Storage Temperature: -40 to +125 °C.

Features

UTC3308L features: (1)Single Supply; (2)Operating Voltage (+3V to +15V) (±1.5V to ±7.5V); (3)High Output Current (150mA); (4)High Frequency Noise Rejection; (5)Internal Enhanced Frequency Compensation.

Diagrams

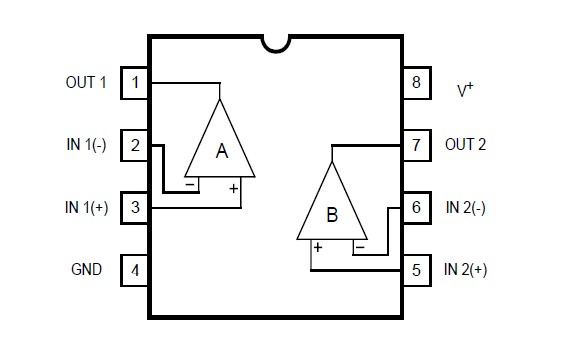

UTC3308L pin connection
