Product Summary

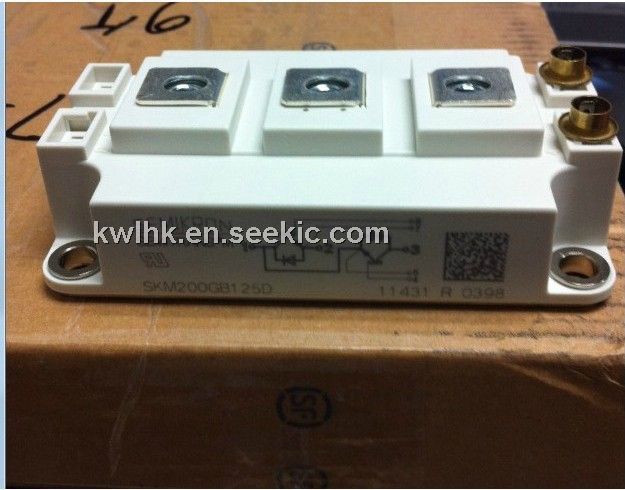

The SKM200GB123D is a Trench IGBT Module. The applications of the SKM200GB123D include AC inverter drives and UPS.

Parametrics

SKM200GB123D absolute maximum ratings: (1)VCES Tj=25℃: 1200V; (2)IC Tj=150℃: 200A; (3)ICRM: 300A; (4)VGES: ±20V; (5)tpsc: 10μs; (6)IF: 200A; (7)IFRM: 300A.

Features

SKM200GB123D features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6xIcnom; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Large clearance (13mm) and creepage distances(20mm).

Diagrams

SKM200GB123D pin connection
